PRO.SIS-TEL
CONTROL BOX AUXILIARY DISPLAY
[HOME] [PROJECTS] [CONTACTS] [DOWNLOADS] [PICTURES]

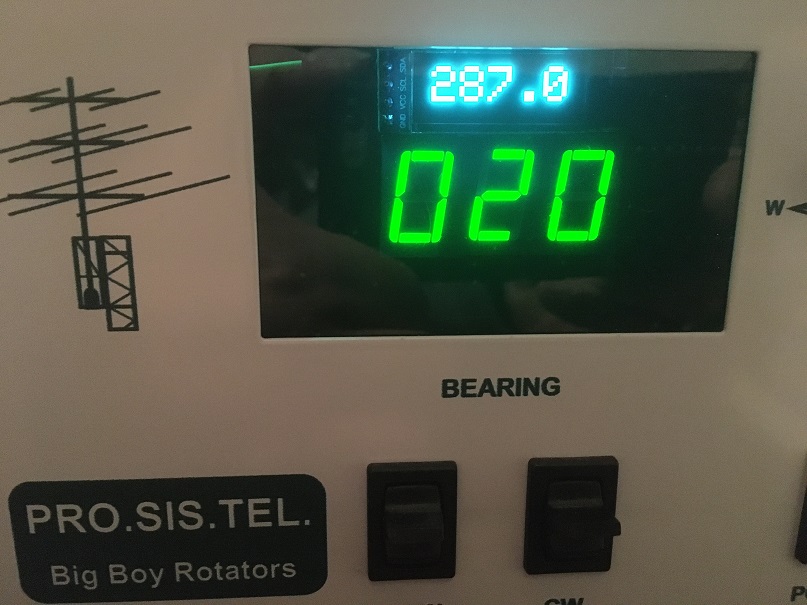

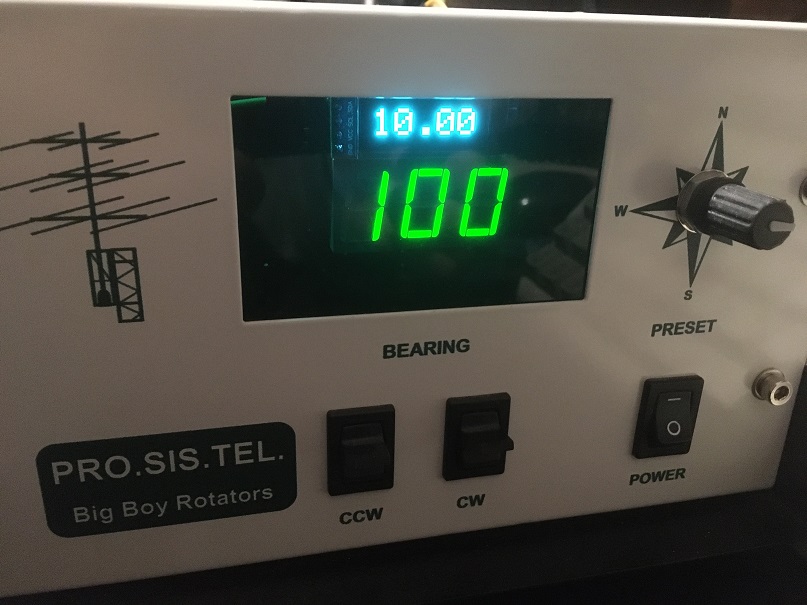

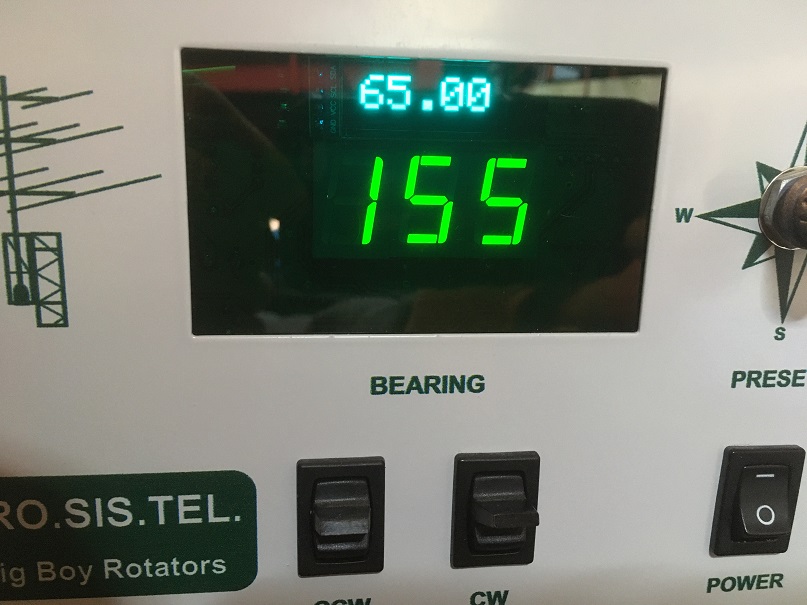

I've
added this additional display to my PROSISTEL Rotator Control box, to
monitor the position of a second antenna installed with an offset of
90 degrees from the main one.

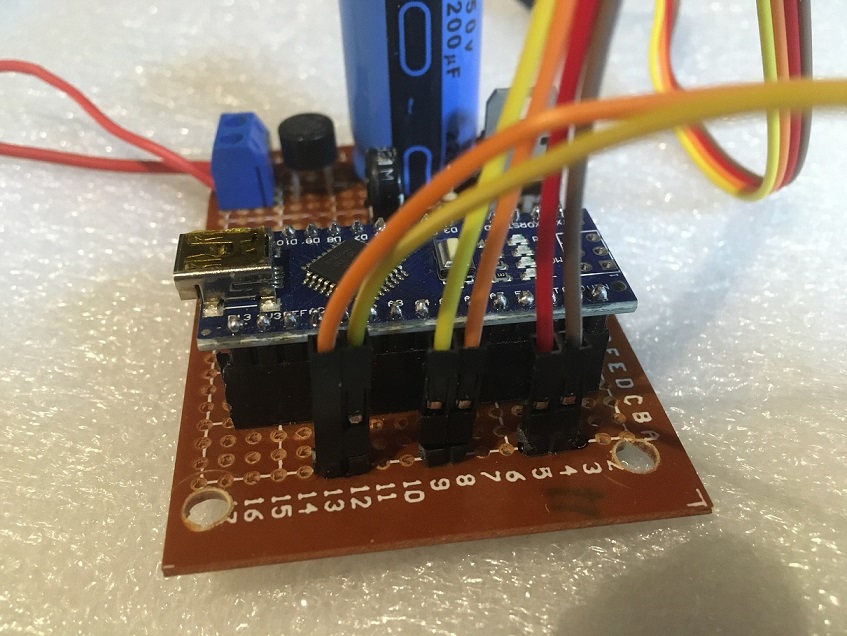

An
Arduino Nano is reading the analog voltage signal proportional to the
position of the main antenna (after the conditioning made on the main
control box board), converting it to an angular position, and
displaying it on an OLED display, that fits right above the main
display.
