GPS AND AUXILIARY DISPLAY FOR QO100 GROUND STATION

[HOME] [PROJECTS] [CONTACTS] [DOWNLOADS] [PICTURES]

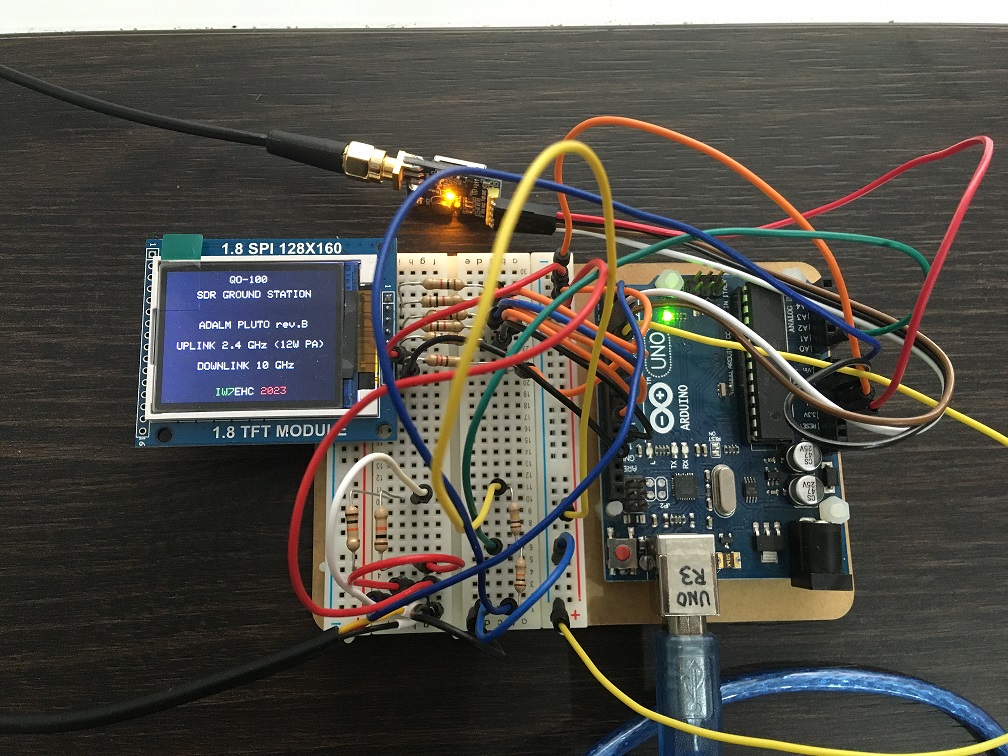

This is the latest addition to my portable QO-100 SDR Ground Station.

The data generated by a GPS module is displayed on TFT display.

I've configured 2 screens, selected with a switch:

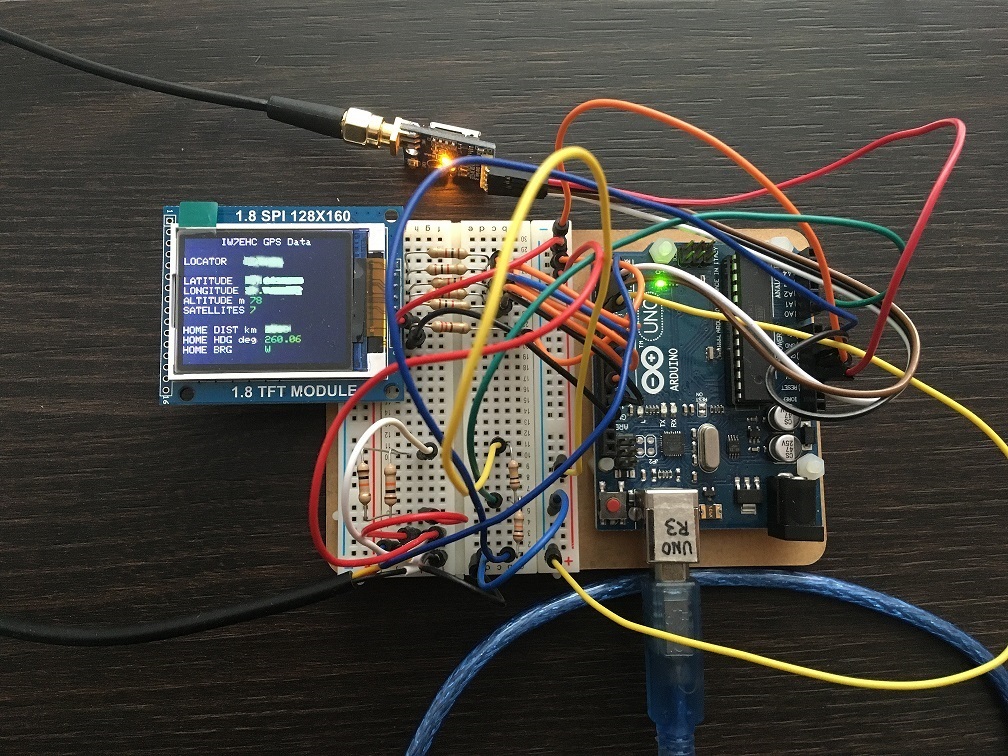

The first screen is displaying the GPS data (latitude,longitude,locator,altitude).

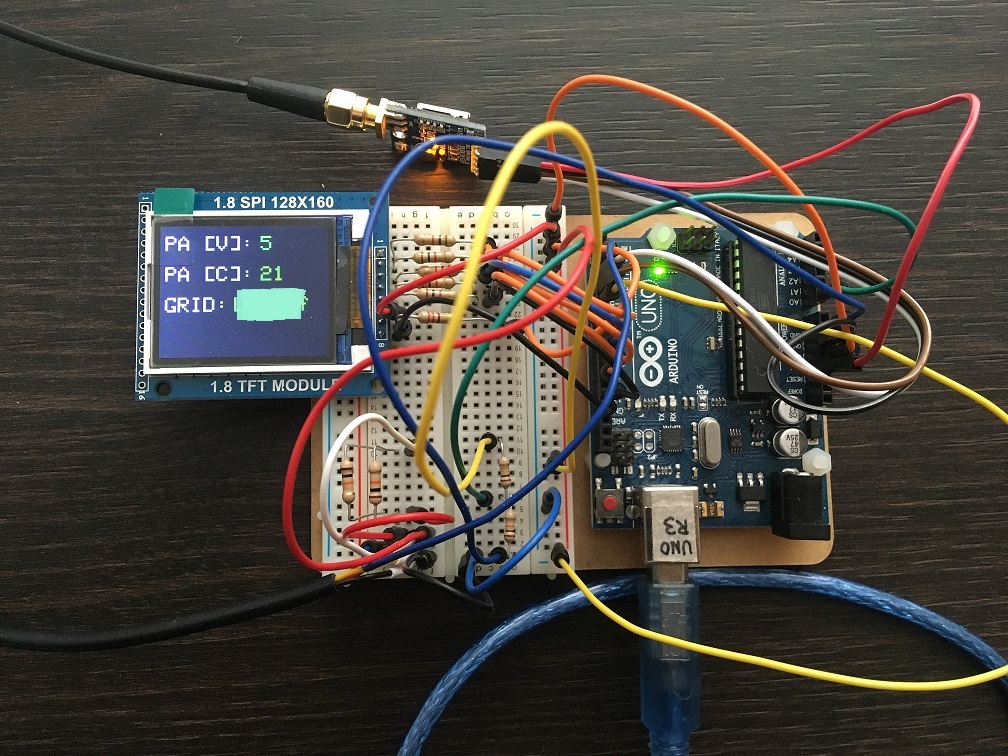

The second screen is used to monitor the temperature and supply voltage of the PA, and the main power supply voltage.
